노도스트(NORDOST) Krell CAST MMF 케이블(2.0m)

노도스트(NORDOST) Krell CAST MMF 케이블(2.0m)입니다.

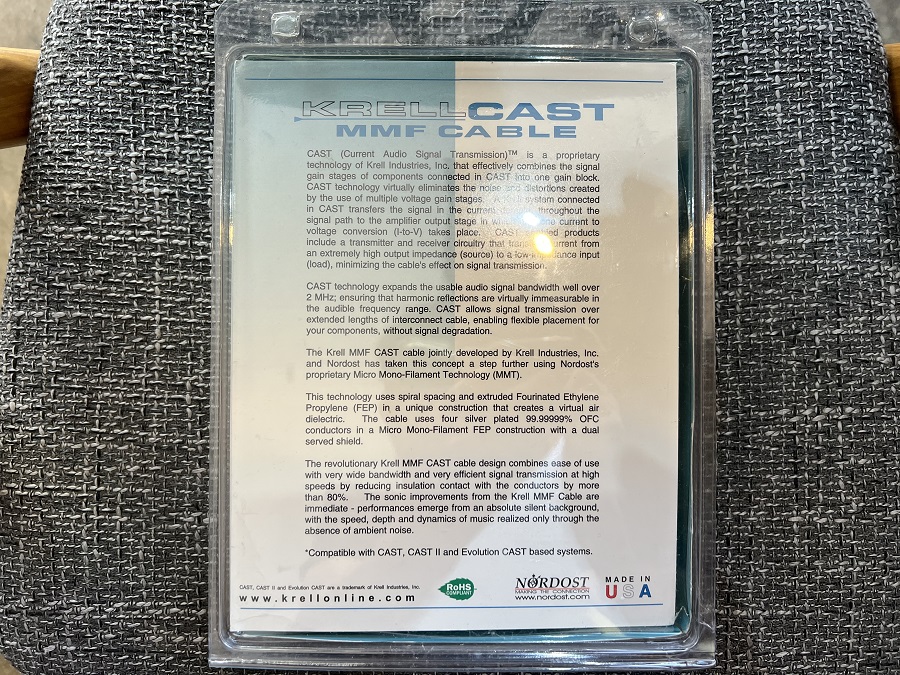

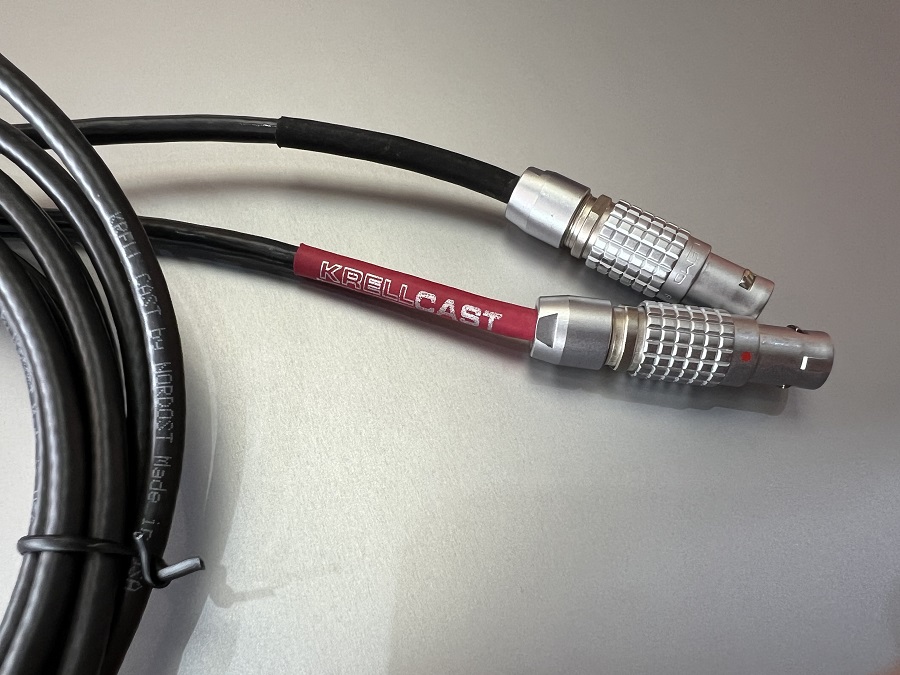

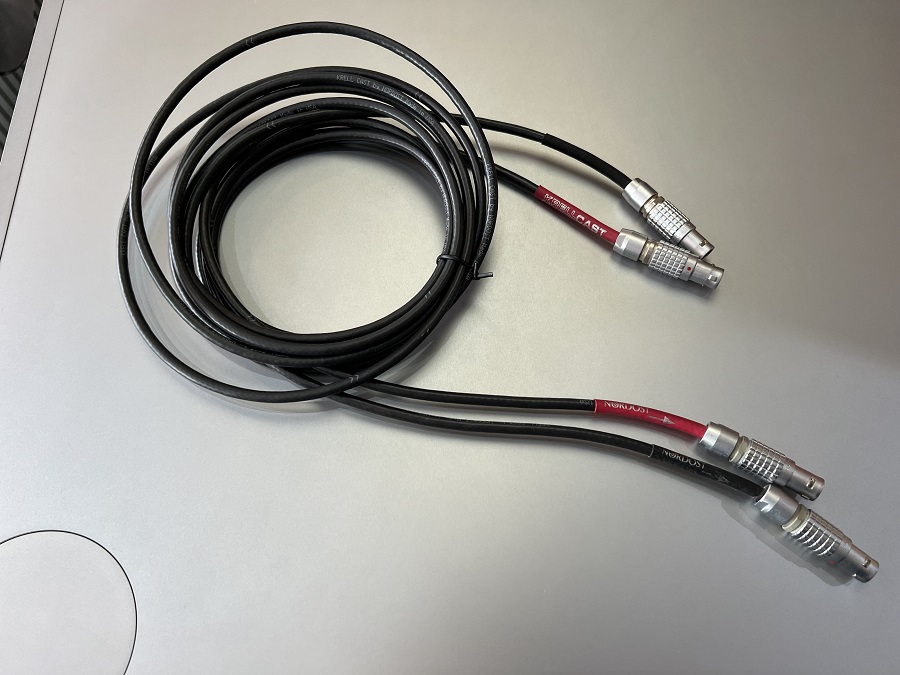

실물사진입니다.

크렐(KRELL) 분리형 제품에 사용하는 CAST (Current Audio Signal Transmission) 전송케이블입니다.
노도스트(NORDOST)에서 제작된 상급 케이블로 초정밀 하이테크 기술과 완벽한 실드를 통해 광대역 하이스피드, 완벽한 신호전송을 추구하며 깊이있는 사운드 스테이지와 다이내믹 레인지, 토털 밸런스, 섬세한 음악적 분해력을 잘 표현해주는 케이블입니다.
길이 2.0m 페어 완제품입니다.

상태 좋습니다. 박스 있습니다.
판매가는 송료포함 100만원입니다.
광주 직거래 가능하고 전국택배 가능합니다.

010-8615-1858
poohlover4364@hanmail.net

CAST (Current Audio Signal Transmission) is a proprietary technology by Krell Industries, LLC that effectively combines the signal gain stages of components connected in CAST into one gain block. CAST technology virtually eliminates the noise and distortions created from the use of multiple voltage gain stages. A Krell system connected in CAST transfers the signal in the current domain, throughout the signal path to the amplifier output stage where only one current to voltage conversion (I-to-V) takes place. CAST enabled products include a transmitter and receiver circuitry that transfers current from an extremely high output impedance (source) to a low-impedance input (load), minimizing the cable’s effect on signal transmission.

CAST technology expands the usable audio signal bandwidth well over 2 MHz; ensuring harmonic reflections are virtually immeasurable in the audible frequency range. CAST allows signal transmission over extended lengths of interconnect cable, allowing flexible placement for your components, without signal degradation.

The Voltage Signal Transmission and the Traditional Audio System
Traditionally, signal is transmitted in the voltage domain between two components. In an audio system, each component is a discrete entity with unique characteristics that act upon the musical signal independently. Each component is unaware of the other components in the system. The cables that connect the components also have their own electrical characteristics, which affect the sonic presentation of the entire system. CAST transmission unifies individual components and interconnects into an electrically linked whole. The original signal remains unaltered from source to speaker.

CAST Basics
Here’s how a CAST audio system works. Internally, each CAST source transfers, or amplifies, current using Krell Current Mode circuitry. This current signal is then output using CAST circuitry. When the signal is received by a CAST input, Krell Current Mode circuitry again takes over until the signal reaches the loudspeaker. By maintaining the musical signal in the current domain from beginning to end, an entire CAST system behaves as if it is one component. With CAST, circuit board properties and signal transmission aberrations between components are eliminated. Cable impedances and their effects on the transmitted signal are non-existent.

How CAST and Krell Current Mode Interact
While CAST is a new method of transferring the musical signal between components, its origin stems from Krell Current Mode, the technology developed to transfer the musical signal within a component. CAST combined with Krell Current Mode takes circuitry signal transmission to the next evolutionary level. In essence, Krell Current Mode maintains the integrity of the signal within the component and CAST preserves the transmitted signal between components. Together, CAST and Krell Current Mode technologies unify separate Krell components into a single global circuit. Krell Current Mode technology enjoys bandwidth increases up to an order of magnitude greater than their voltage based counterparts. This dramatic increase in circuit bandwidth delivers near perfection in the audible band that typically suffers from phase distortions in voltage circuits.

Evolution CAST
By employing radical current mirror circuitry, the Evolution components elevate the CAST technology to another level. This advanced use of the technology increases the linearity, transient speed, and bandwidth of the Evolution components while reducing the distortion by an order of magnitude.

The Best Musical Performance
When you operate a CAST system, you will hear significant improvements in every performance area: speed, precision, dynamic range, depth and width of the sound stage, transient impact, tonal balance, harmonic distortion, and more. The goal for CAST is the same company goal used for all Krell products. Krell strives for the delivery of the best performance of a musical event for you, using the full expression of technology to date.

CAST® MMF Interconnect Cable
